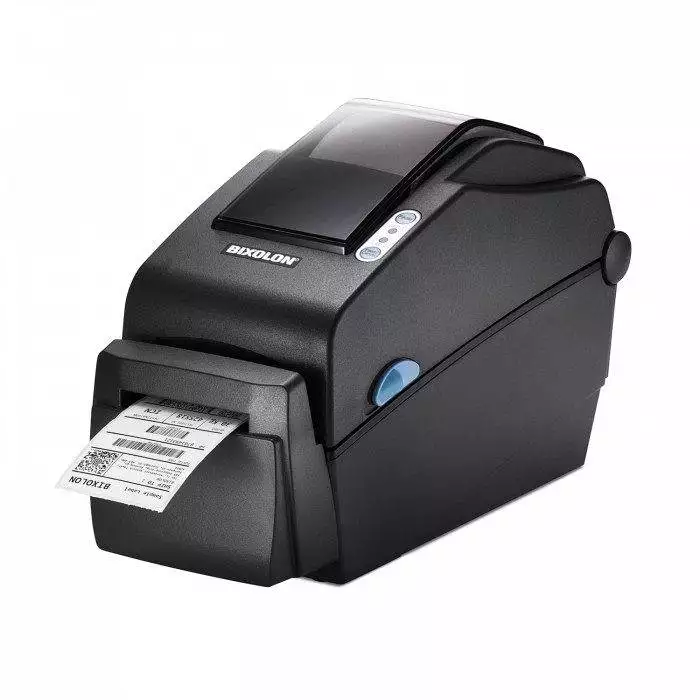

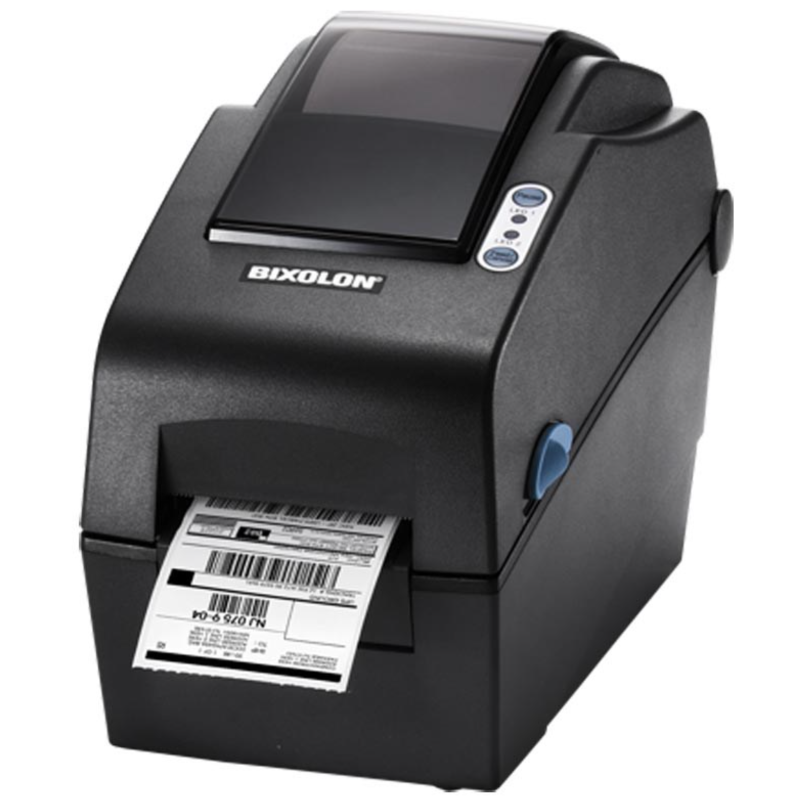

BIXOLON DX220EG ETHERNET
Premium yet compact, SLP-DX220 2” direct thermal barcode label printer is perfect for a range of applications from wrist banding, order labelling to barcode printing.
Offering print speeds up to 6ips (152mm/second) and high resolution 203dpi print quality. The SLP-Dx220 provides fast data processing speeds for various types of labels. The SLP-DX220 also offers Autocutter and Peeler options.
The SLP-DX220’s dynamic design with easy paper loading and adjustable paper guide provides the option for various media sizes.
Offering the dual interface, with USB & Serial standard and optional USB, Ethernet and WLAN*. The SLP-DX220 is fully compatible with market-leading programming languages such as SLCS, BPL-Z™ and BPL-E™.
BIXOLON Label Artist™ completes the package, this free-of-charge label customisation software, supporting database connection as well as text, drawing lines and boxes, alongside a range of graphics and 1D/2D barcode printing.
*WLAN: 802.11b/g/n USB dongle type (not included in the package)
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | “SLP-DX220: Up to 6 ips (152 mm/sec)SLP-DX223: Up to 4 ips (100 mm/sec) “ |
| Print Resolution | “SLP-DX220: 203 dpiSLP-DX223: 300 dpi “ |
| Print Width | “SLP-DX220: Up to 54 mmSLP-DX223: Up to 56.9 mm” |
| Print Length | Up to 2,000 mm |
| Sensor | Transmissive, Reflective (Adjustable), Head Open |
| Media Characteristics | |
| Media Type | Gap, Black Mark, Notch, Continuous, Fan-Fold |
| Media Width | 15 ~ 60 mm |
| Media Roll Diameter | Up to 130 mm |
| Media Thickness | 0.06 ~ 0.20 mm |
| Supply Method | Easy Paper Loading |
| Inner Core | 12.5 ~ 38.1mm |
| Ribbon Characteristics | |
| Ribbon Type | – |
| Ribbon Width | – |
| Ribbon Length | – |
| Core Inner Diameter | – |
| Physical Characteristics | |
| Dimensions (WxDxH) | “120 x 230 x 170 mm (4.72 x 9.05 x 6.69 inch)” |
| Weight | 1.36 kg (2.99 lbs.) |
| Electrical | “EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz” |
| Display | |
| Camera | |
| Performance Characteristics | |
| Memory | 64 MB SDRAM, 128 MB Flash |
| Interface | “Standard: USB+SerialOptional: ① USB+Ethernet+WLAN ② USB+WLAN+Bluetooth————————————————————-WLAN: 802.11a/b/g/n/ac Dongle type – requires a USB Host port (Optional)Bluetooth: Built-in type, MFi iAP2 certified “ |
| Real Time Clock | Supported(Option) |
| Environment Characteristics | |
| Temperature | “Operating: 0 ~ 40℃ (32 ~ 104℉)Storage: -20 ~ 60℃ (-4 ~ 140℉)” |
| Humidity | “Operating: 10 ~ 80% RHStorage 10 ~ 90% RH” |
| Reliability | |
| Thermal Print Head (TPH) | |
| Auto Cutter | |
| Platen Roller | |
| Software | |
| Emulation | SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL) |
| Driver/Utility | “Windows Driver (Europlus/Seagull)Linux/Mac CUPS DriverVirtual COM USB/Ethernet DriverUtility ProgramOPOS/JPOS DriverBartender Ultralite for BIXOLONLabel Artist-II™SAP® Device Driver” |
| SDK/Plugin | “Android/iOS/Windows SDK Linux SDKChrome SDKXamarin SDK” |
| Application | “Label Artist™Mobile (Android,iOS)mPrint App (iOS)mPrint Server (Windows, iOS)” |
| MDM(Optional) | BIXOLON Profile Manager – XPM™, XCM™ (Windows, Android) |
| Fonts/Graphics/Symbologies | |
| Fonts | 10 SLCS™ / One SLCS™ / 16 BPL-Z™ / One BPL-Z™ / 5 BPL-E™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE) |
| Graphics | Supporting user-defined fonts, graphics, formats and logos |
| Barcode Symbologies | “1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39 “ |
| Accessories | |
| Standard | – |
| Optional | Peeler, Auto Cutter, WLAN Dongle (Consensus required), Serial cable, USB cable |
| Weight | 2.54 kg |
|---|
