SAM4S Astra 21.5″ Kiosk – Windows IOT 10

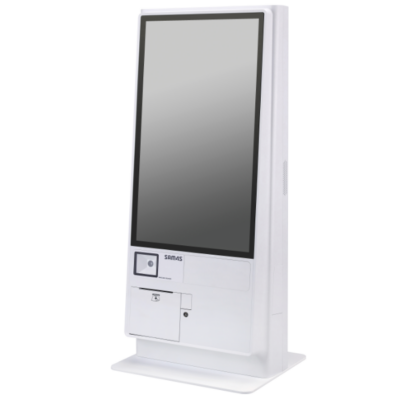

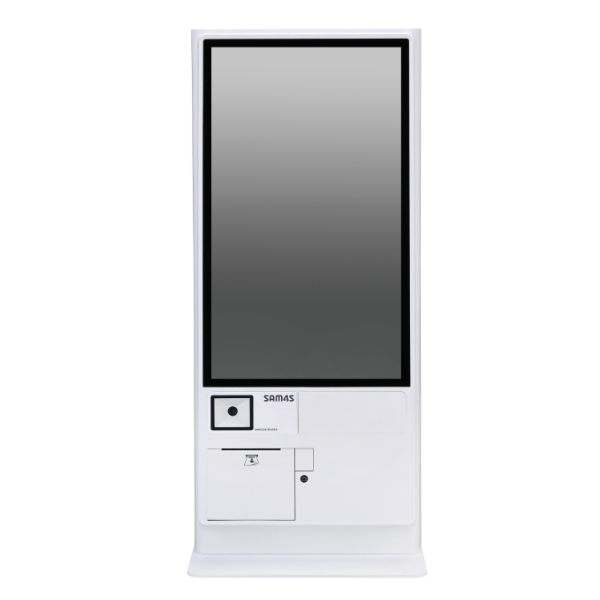

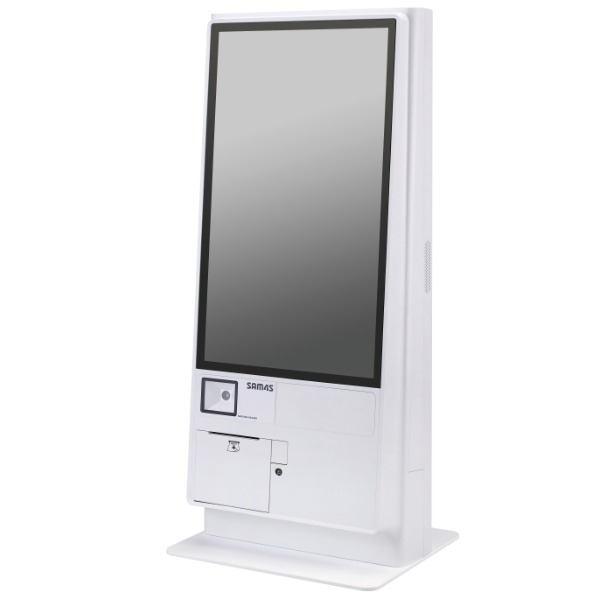

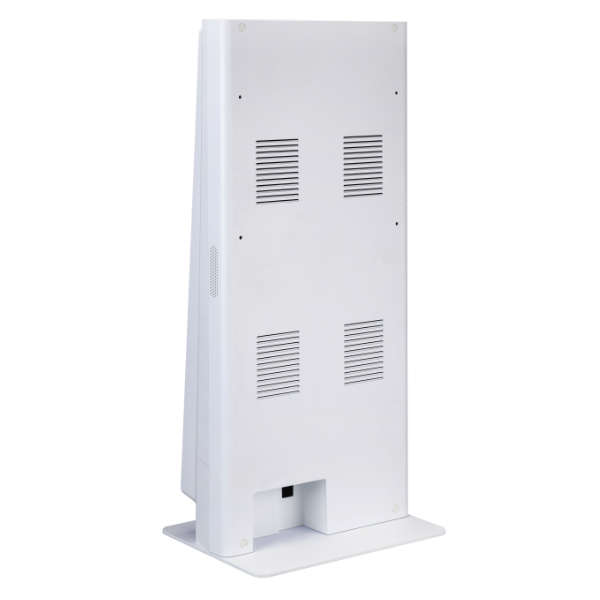

SAM4S Astra Self-Service Touch Kiosk
J6412 CPU / QUAD CORE / 4GB RAM / 64GB SSD
The Sam4s ASTRA Self-Service Touch Kiosk offers vibrant & precise 21.5” projected capacitive multi-touch display and is extremely durable in most environments including withstanding water contact, dust & grease (IP55 Rated).
The Sam4s projected (PCT) will activate with either a bare finger or a capacitive stylus preventing users from using pens, credit cards or sharp objects which potentially would reduce the life expectancy of resistive touch panels. In addition the screen has a more vivid & crisp colour enhancing the quality of the overall user experience.
With its spill proof multi-touch bezelless display, ergonomic design and innovative base, the Sam4s ASTRA Self-Service Touch Kiosk is one of the most stylish and aesthetically pleasing Self Service terminals in its class.

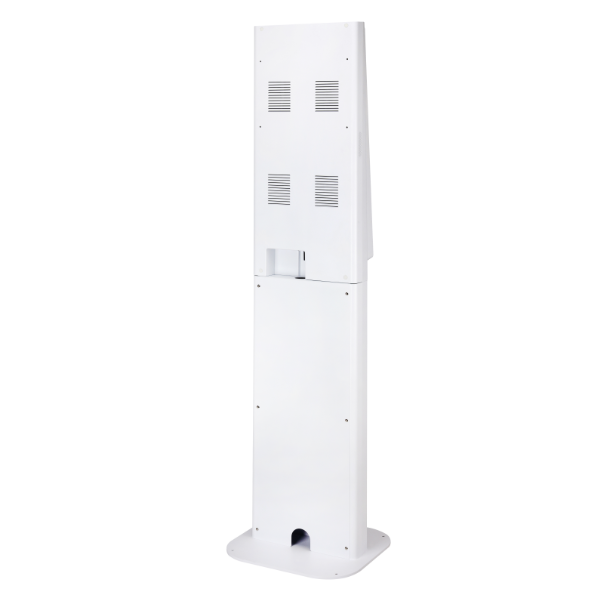

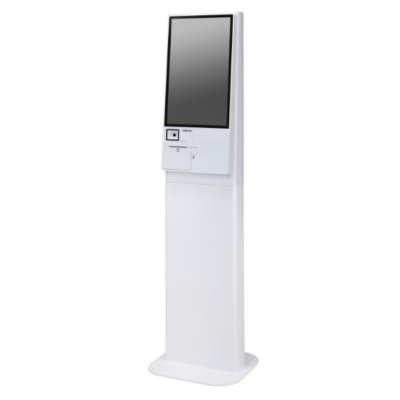

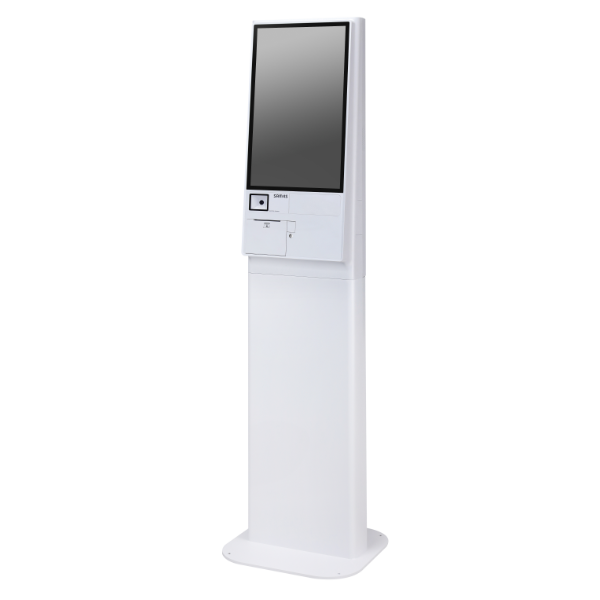

The Sam4s ASTRA Touch Kiosk can be used as a desktop terminal, wall mounted (optional) or stand alone utilising the slim & stylish optional stand.
A reliable & accessible system the Sam4s ASTRA KIOSK terminal has many added benefits making it excellent value for money and a great investment as your Self Service solution.

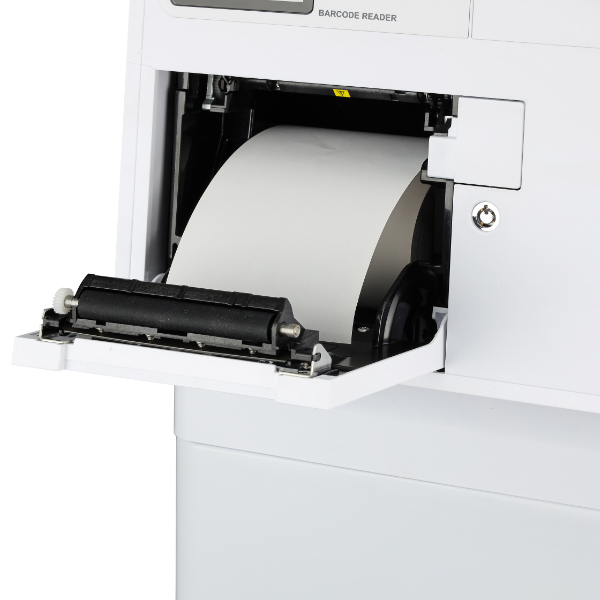

The Sam4s ASTRA Self-Service Touch Kiosk incorporates a 3” thermal receipt printer with auto cutter, serial and USB interfaces plus 2D barcode laser scanner, wi-fi connectivity and a free-standing cabinet .
21.5 Inch PCAP Touch Screen 1920 x 1080 Full HD.
J6412 Quad Core Processor (Quad Core up to 2.4GHz).
Supports Multi-Touch Monitor.
3 Inch Thermal Receipt Printer with Auto Cutter.
5 X Serial & 4 XUSB Interfaces.
mSATA 64GB HD (up to 256GB).
4GB RAM (up to 32GB)
2D Barcode Scanner
Dimensions:
System 334 x 275 x 776mm.
System with Stand 400 x 380 x 1571mm
Weight:
System 15.5Kg.
Stand 18.8Kg.
| Weight | 15.5 kg |
|---|---|
| Dimensions | 275 × 335 × 776 cm |
| Processor | J6412 Quad Core Processor (Quad Core up to 2.4GHz) |
| Storage | mSATA 64GB HD (up to 256GB) |
| Ram | 4GB RAM (up to 32GB) |
| Operating System | Windows 10 IOT |
| Display | 21.5 Inch PCAP Touch Screen 1920 x 1080 Full HD |
| Interfaces | 5 x RS-232 Ports (4 x DB9, 1 x RJ45) Optional 6th Port 4 x USB Ports (1 x USB3.0/2.0 7 x USB2.0) 1 x VGA Port for External Display 1 x 10/100/1000Mb Ethernet Port |

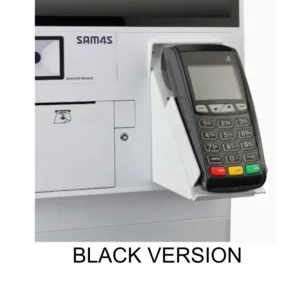

| Options | EFT bracket, Wall mount, floor stand |
| Warranty | 3 Year |
| Printer | 80mm Thermal printer |
| Others | Inc. 2d barcode scanner |
